Single Push Button Start–Stop Logic in PLC (Ladder Diagram Explained)

by

Modern industrial machines often require simple and reliable control using minimal hardware. One common requirement is to start and stop a motor using a single push button instead of separate Start and Stop buttons.

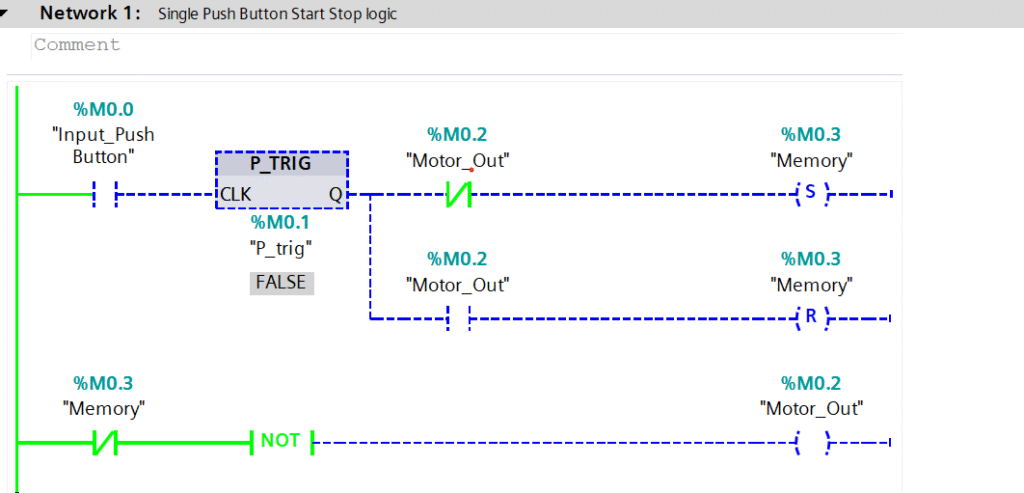

This article explains a Single Push Button Start–Stop PLC logic using edge detection (P_TRIG) and memory bits, as shown in the ladder diagram below.

Why Use Single Push Button Logic?

Using one push button instead of two provides several advantages:

  • Reduced wiring and panel space
  • Lower hardware cost
  • Simple operator interaction
  • Cleaner logic using memory bits

Each press of the button toggles the motor state:

  • First press → Motor ON
  • Second press → Motor OFF

Overview of the Logic

This ladder program uses:

  • Positive edge detection (P_TRIG)
  • Set / Reset (SR) memory logic
  • Internal memory bits (%M)
AddressNameDescription
%M0.0Input_Push_ButtonPhysical push button input
%M0.1P_trigPositive edge trigger
%M0.2Motor_OutMotor output control
%M0.3MemoryToggle memory bit

How the Logic Works (Step by Step)

1. Push Button Edge Detection

The push button is connected to a P_TRIG (Positive Trigger) block.

  • The P_TRIG detects only the rising edge (OFF → ON)
  • Prevents repeated toggling while the button is held
  • Ensures one action per press

2. Toggle Logic Using Memory Bit

When the button is pressed:

  • If the motor is OFF, the memory bit %M0.3 is SET
  • If the motor is ON, the memory bit %M0.3 is RESET

This is achieved using:

  • SET coil (S) when motor is OFF
  • RESET coil (R) when motor is ON

This effectively creates a toggle behavior.

3. Motor Output Control

The final network controls the motor output:

  • The motor output %M0.2 follows the inverse state of the memory bit
  • When memory is ON → Motor ON
  • When memory is OFF → Motor OFF

This separation improves clarity and troubleshooting.

Sequence of Operation

Button PressMemory BitMotor State
InitialOFFOFF
1st PressONON
2nd PressOFFOFF
3rd PressONON

Advantages of This Logic

✅ Prevents button bouncing issues
✅ Safe and predictable behavior
✅ Easy to expand (interlocks, alarms, timers)
✅ Works well in Siemens TIA Portal and similar PLCs

Applications

This logic is commonly used in:

  • Conveyors
  • Pumps
  • Fans
  • Small machines
  • Manual override controls
